Pumps

Before choosing a centrifugal pump it is important to consider the end use for the pump. Brewmation assembles pumps using two different style pump heads. One style has an external seal (Topline head) and the other has an internal seal (Ampco head). For more information, visit out Pumps page.

External Seal Pumps

(Topline C-100): Pump style used for wort, water, and cider transfers. Also used for tank CIP. Although the seal used is a high temperature type, transferring wort above 120F will require frequent seal cleaning (to avoid leaks) and accelerated seal wear and tear. High temperature water transfers and CIP do not cause seal issues (easily handles boiling water temperatures).

Internal Seal Pumps

(Ampco CB+114): Pump style used for high and low temperature wort, water, and cider transfers. Also used for tank CIP. The internal seal pump is designed for high temperature wort pumping (Wort vorlauf, whirl pooling, and wort transfers through a heat exchanger) without excessive wear and tear on the seal.

Recommended Sizing

Wort Transfer:
1/2 HP - 3/4 HP (up to 7 BBL)
1 HP - 1.5 HP (up to 20 BBL)

Note: For transferring through a plate heat exchanger on systems larger than 2bbl, 3500RPM motors are required. These are only available when a VSD is connected or on 1HP pumps.

CIP:
1/2HP to 3/4HP up to 7bbl (cart pumps with a variable speed drive)
1HP up to 7bbl (stand alone single speed pump)
1HP - 1.5HP up to 30bbl tanks (cart pumps with a variable speed drive)

Note: Stand alone pumps without a variable speed drive are not recommended for pumps above 1HP

For flow rates, see the pump curves below:

Centrifugal Pumps

3/4 HP Fixed Speed Centrifugal Pump
$ 1,646.00 USD
1/2 HP Fixed Speed Centrifugal Pump
$ 1,618.00 USD
1 HP Fixed Speed Centrifugal Pump
$ 1,682.00 USD

Cart Pumps

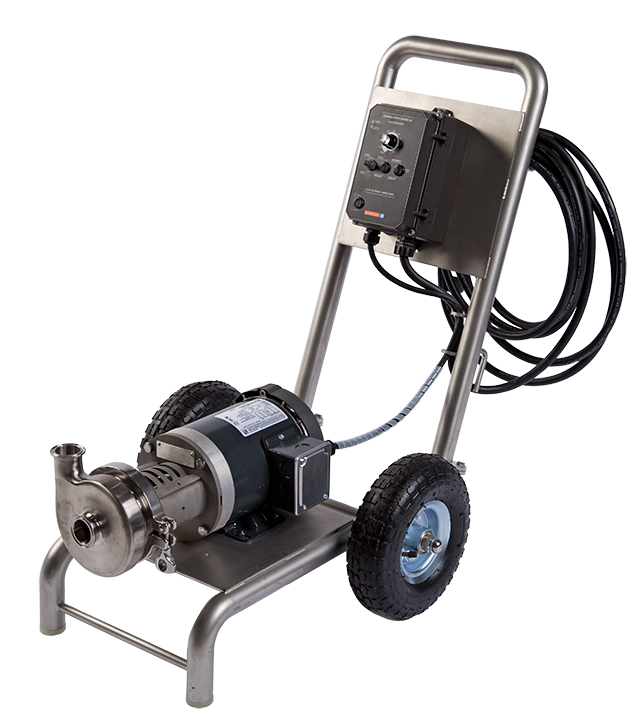

1.5 HP Cart Mounted Variable Speed Centrifugal Pump
$ 2,771.00 USD
1 HP Cart Mounted Variable Speed Centrifugal Pump
$ 2,618.00 USD
3/4 HP Cart Mounted Variable Speed Centrifugal Pump
$ 2,547.00 USD
1/2 HP Cart Mounted Variable Speed Centrifugal Pump
$ 2,469.00 USD

Seal Kits

Pump Seal Kit
$ 40.00 USD

Pump & Flow Rate and Pressure Information

Topline C-100 internal seal pump flow examples:
Ampco CB+114 external seal pump flow examples:

1/2HP & 3/4HP fixed speed pumps (low RPM)

High pressure low flow:
10GPM at 7PSI (17ft of head)
High flow low pressure:
34GPM at 4.3PSI (10ft of head)

1/2HP & 3/4HP fixed speed pumps (low RPM)

High pressure low flow:
21GPM at 7PSI (17ft of head)
High flow low pressure:
70GPM at 4.3PSI (10ft of head)

1/2 HP (variable speed)

High pressure low flow:
10 GPM at 21.7PSI (50ft of head)
High flow low pressure:
20 GPM at 17.3PSI (40ft of head)

1/2 HP (variable speed)

High pressure low flow:
5 GPM at 31PSI (65ft of head)
High flow low pressure:
24GPM at 17.3PSI (40ft of head)

3/4 HP (variable speed)

High pressure low flow:
22 GPM at 21.7PSI (50ft of head)
High flow low pressure:
34GPM at 17.3PSI (40ft of head)

3/4 HP (variable speed)

High pressure low flow:
13 GPM at 31PSI (71ft of head)
High flow low pressure:
38GPM at 17.3PSI (40ft of head)

1 HP fixed speed (high RPM)

High pressure low flow:
36 GPM at 21.7PSI (50ft of head)

1 HP fixed speed (high RPM

High pressure low flow:
22 GPM at 31PSI (71ft of head)

1HP (variable speed)

High pressure low flow:
36 GPM at 21.7PSI (50ft of head)
High flow low pressure:
45GPM at 17.3PSI (40ft of head

1HP (variable speed)

High pressure low flow:
22 GPM at 31PSI (71ft of head)
High flow low pressure:
58GPM at 17.3PSI (40ft of head)

1 1/2 HP (variable speed)

High pressure low flow:
36 GPM at 21.7PSI (50ft of head)
High flow low pressure:
60GPM at 17.3PSI (40ft of head)

1 1/2 HP (variable speed)

High pressure low flow:
36 GPM at 31PSI (71ft of head)
High flow low pressure:
86GPM at 17.3PSI (40ft of head)

Pump Curves

3.68" & 4" impellers are used.
Fixed speed pumps to 3/4HP run at 1750 RPM
Fixed speed pumps at 1HP run at 3500 RPM
Variable speed pumps run up to 3500 RPM


Topline Pumps at 1750 RPM
Topline Pumps at 3500 RPM
Ampco Pumps at 1750 RPM
Ampco Pumps at 3500 RPM
